Past Second 4B Exam Solutions:

Like for the first exam set, watch for errors, be skeptical. General headings are only approximate. It is difficult to categorize some types of problems, but they are all from past 4B exams.



CIRCUITS:

CIRCUITS01
CIRCUITS02
CIRCUITS03

CIRCUITS04


CIRCUITS05

CIRCUITS06

CIRCUITS07

CIRCUITS08

CIRCUITS09

CIRCUITS10

CIRCUITS11

CIRCUITS12

CIRCUITS13
CIRCUITS14
CIRCUITS15
CIRCUITS16
CIRCUITS17

CIRCUITS18

CIRCUITS19

CIRCUITS20

CIRCUITS21

CIRCUITS22

CIRCUITS23







REALBATTERY:

REALBATTERY01
REALBATTERY02 (find the minus sign mistake)

MAGNETICFORCE/TORQUE:



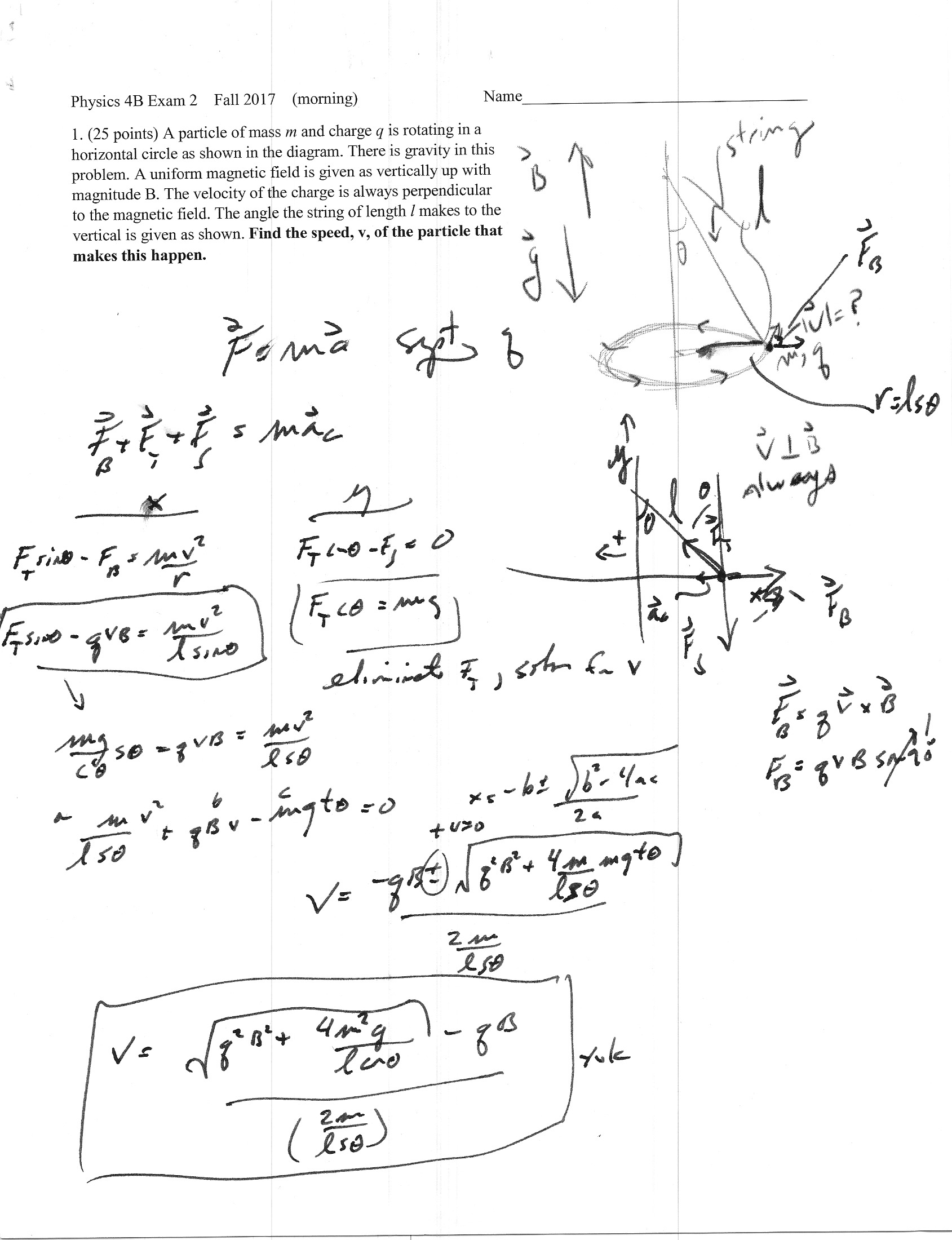

MAGNETICFORCE01

MAGNETICFORCE02

MAGNETICFORCE03

MAGNETICFORCE04

MAGNETICFORCE05
MAGNETCFORCE06

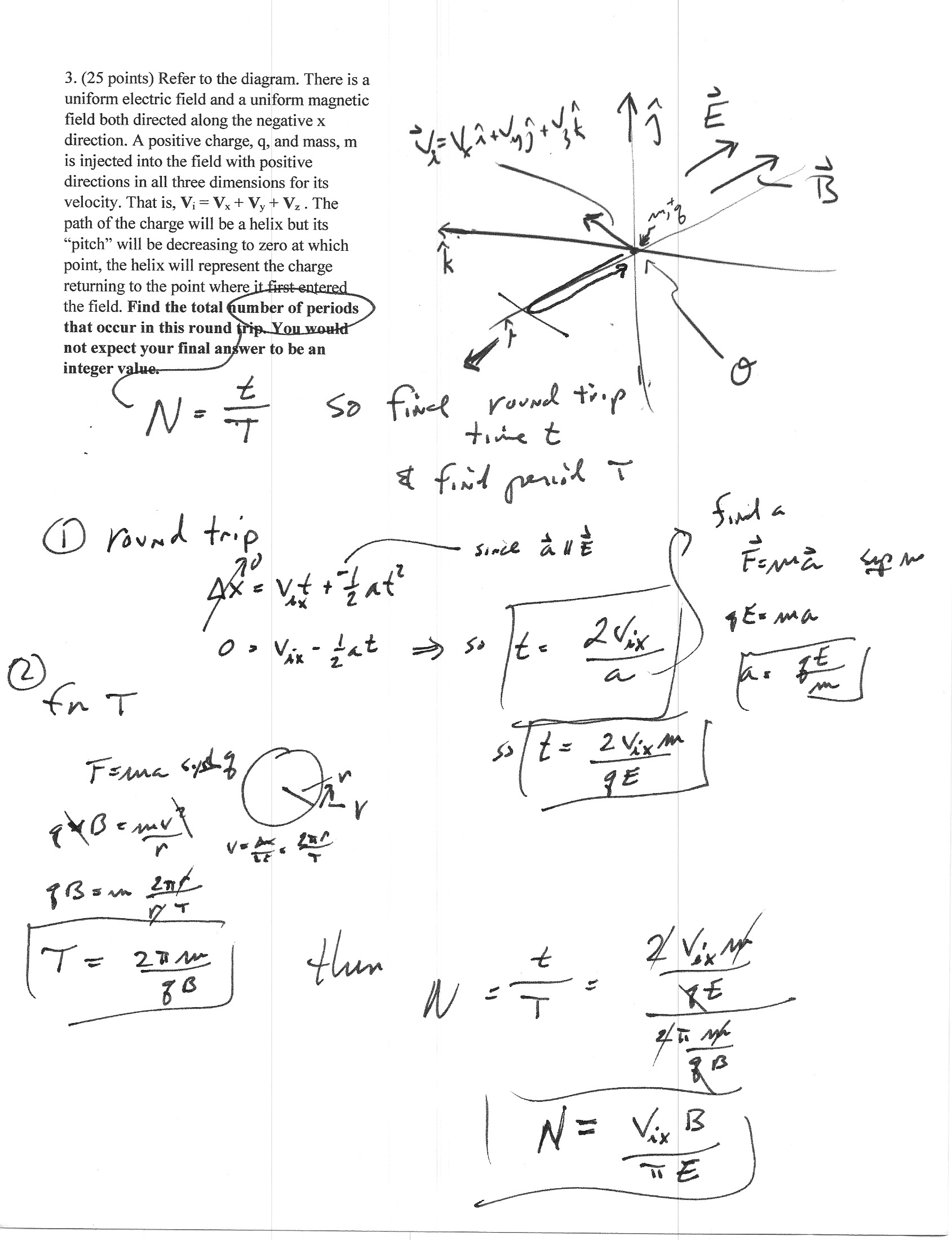

MAGNETICFORCE07 note that in this problem the E field will make the charge move faster in its circle, but this has no effect on the period of its rotation nor on the progression of the helix, which would be at a constant rate. So this question, although at first glance might be awkward, is valid and the answer is correct. The actual trajectory of the charge would be complicated since the radius of the circle radius would be continuously expanding.)

MAGNETICFORCE08

MAGNETICFORCE09

MAGNETICFORCE10

MAGNETICFORCE11

MAGNETICFORCE11

TORQUE03

FORCE01
FORCE02

FORCE03
FORCE04


LORENTZFORCE:

LORENTZFORCE01

LORENTZFORCE02

LORENTZFORCE03

LORENTZFORCE04

AMPERESLAW:

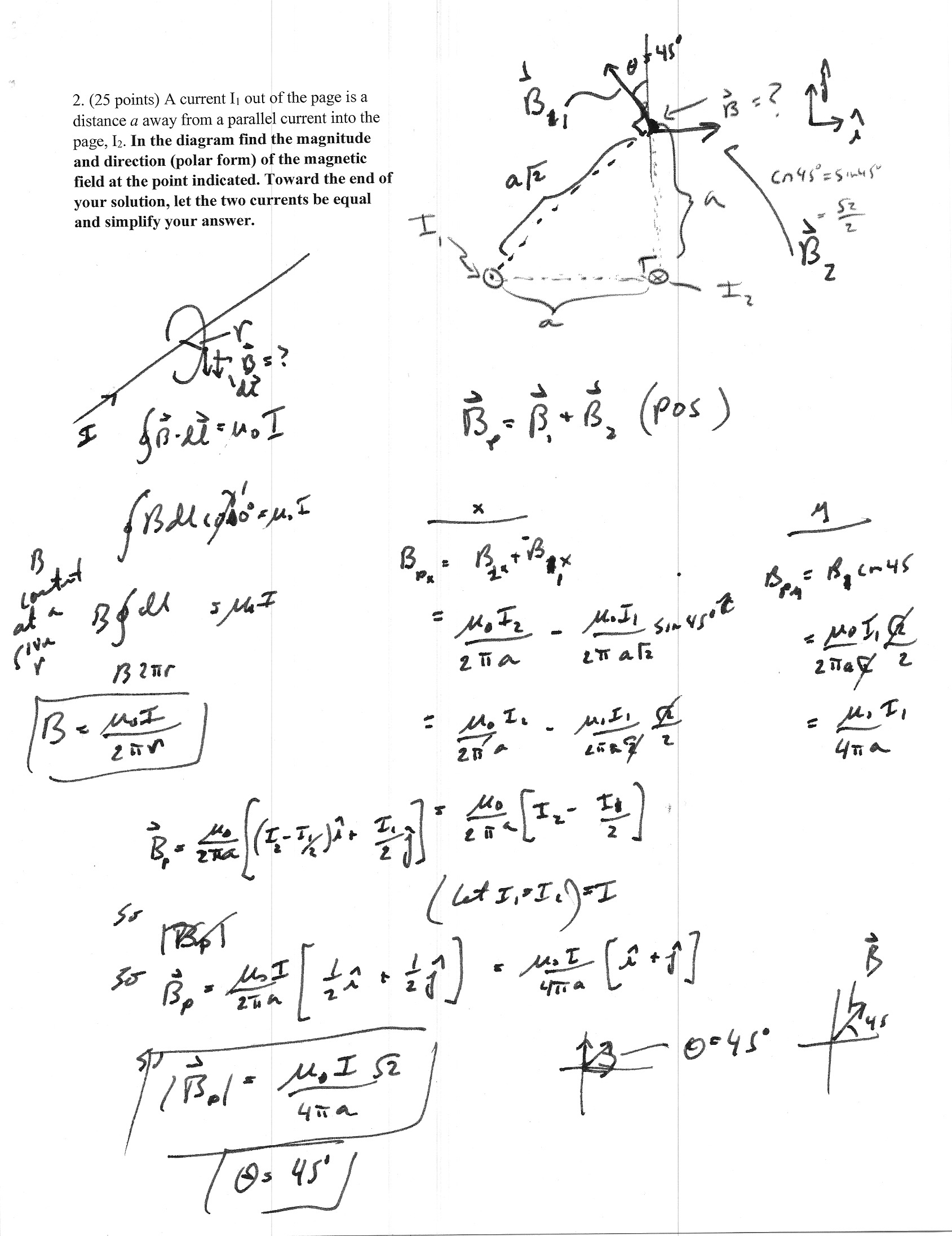

AMPERESLAW01
AMPERESLAW02

AMPERESLAW03

AMPERESLAW04 (find the two little mistakes at the very end)
AMPERESLAW05

AMPERESLAW06

FORCEBETWEENCURRENTS

FORCEANDCURRENT01

FORCEANDCURRENT02

TORQUEANDCURRENT01

TORQUEANDCURRENT02

TORQUEANDCURRENT03

TORQUEANDCURRENT04

TORQUEANDCURRENT05

TORQUEANDCURRENT06

TORQUEANDCURRENT07 (Double check the angle on this one)

TORQUE08



BIOTSAVART:

BIOTSAVART01
BIOTSAVART02
BIOTSAVART03

BIOTSAVART04

BIOTSAVART05

BIOTSAVART06 find the mistake, but it does not change the final answer)
BIOTSAVART07
BIOTSAVART08

BIOTSAVART09
BIOTSAVART10

BIOTSAVART11
BIOTSAVART12

BIOTSAVART13

BIOTSAVART14 (minus sign mistake?)
BS15
BS16
BS17



FARADAYSLAW:

FARADAYSLAW01

FARADAYSLAW02

FARADAYSLAW03

FARADAYSLAW04

FARADAYSLAW05
FARADAYSLAW06
FARADAYSLAW07
FARADAYSLAW08

FARADAYSLAW09

FARADAYSLAW10
FARADAYSLAW11
FARADAYSLAW12

FARADAYSLAW13

FARADAYSLAW14

FARADAYSLAW15

FARADAYSLAW16

FL17

FL18

FL19

FL20
InducedEmfForceonCurrent
